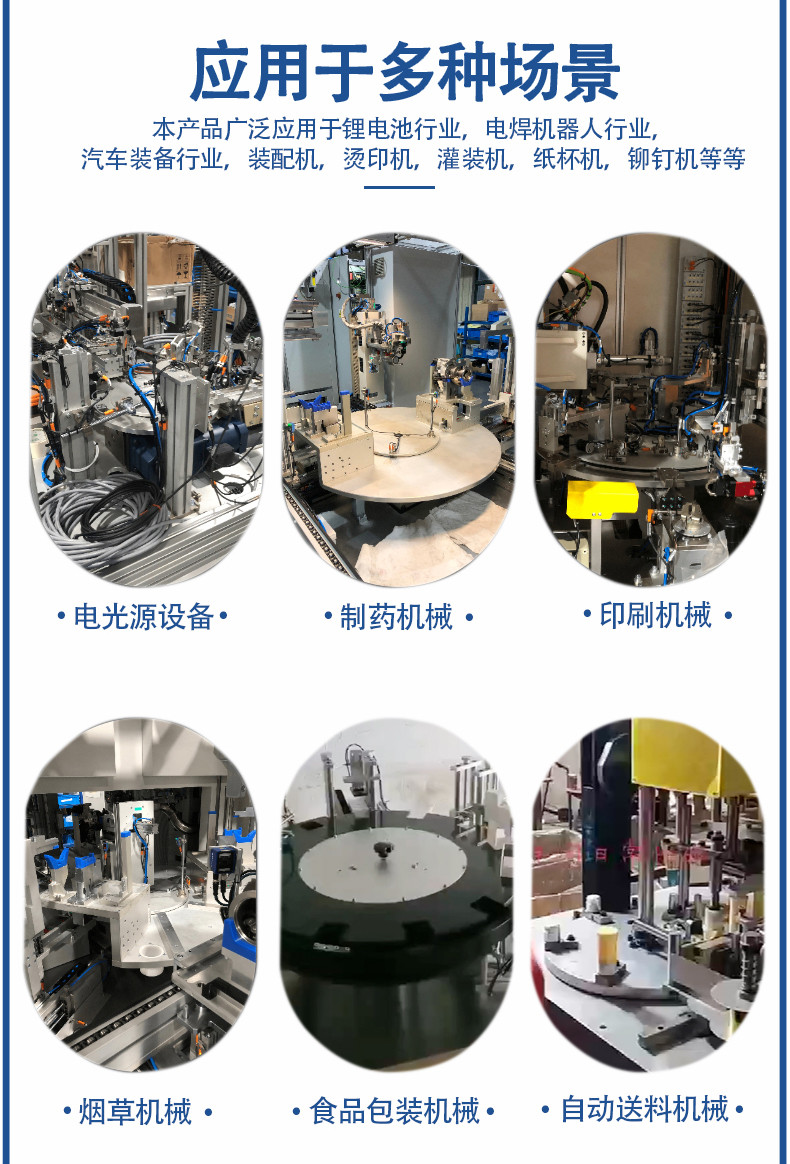

The cam dividers produced by our company are widely used in high-speed notching machines, brazing machines, wire stripping and punching machines, assembly machines, automatic assembly machines, feeding machines, force machines, processing machines, printing machines, pad printing machines, screen printing machines, hot stamping machines, vacuum forming machines, automatic inspection machines, sorting machines, capacitor machines, capacitor sorting machines, resistors and diodes, automatic packaging machines, lead wire welding, filament winding machines, printing machines, food packaging machines, glass machines, ceramic machinery, chemical machinery, CNC machine tools, machining centers and other automated machinery that require intermittent and stepping motions. The divider has the advantages of high stepping positioning, stable high-speed operation, large transmission torque, and self-locking during positioning. The LVNCAM cam divider of Luning Automation is an ideal product to replace traditional intermittent mechanisms such as grooved wheel mechanisms, incomplete gear mechanisms, and ratchet mechanisms.

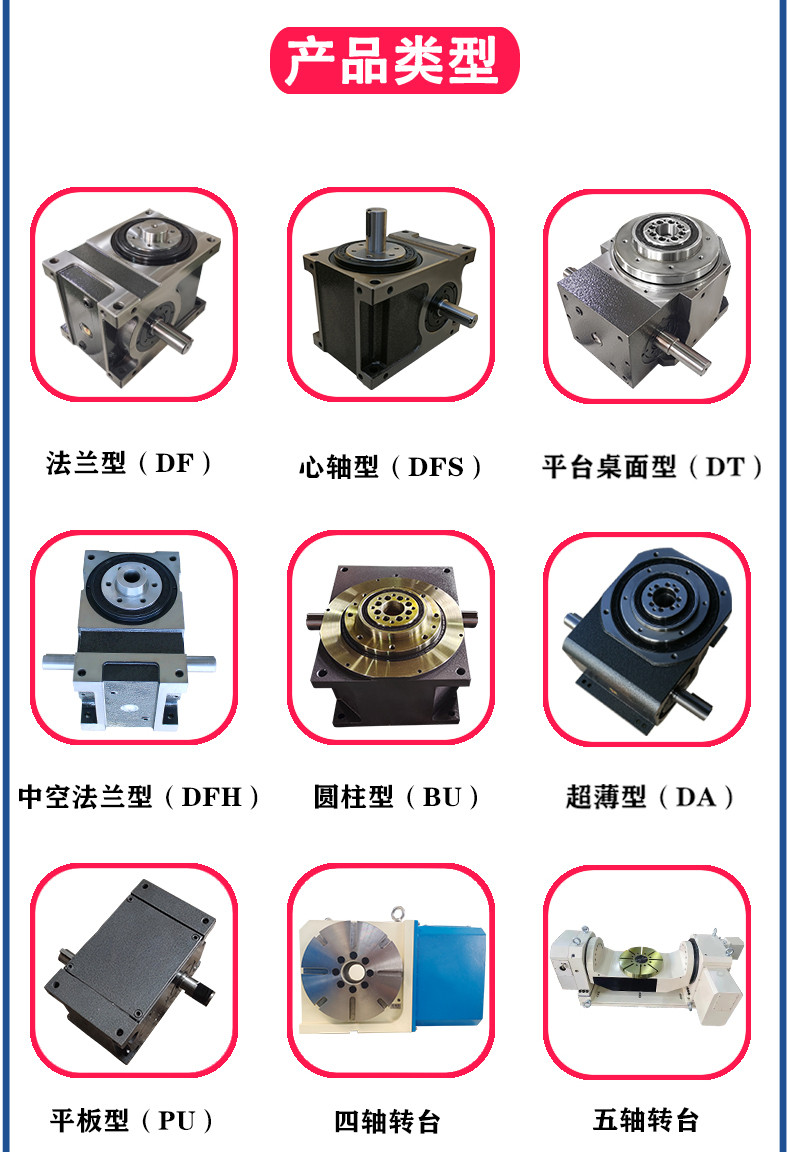

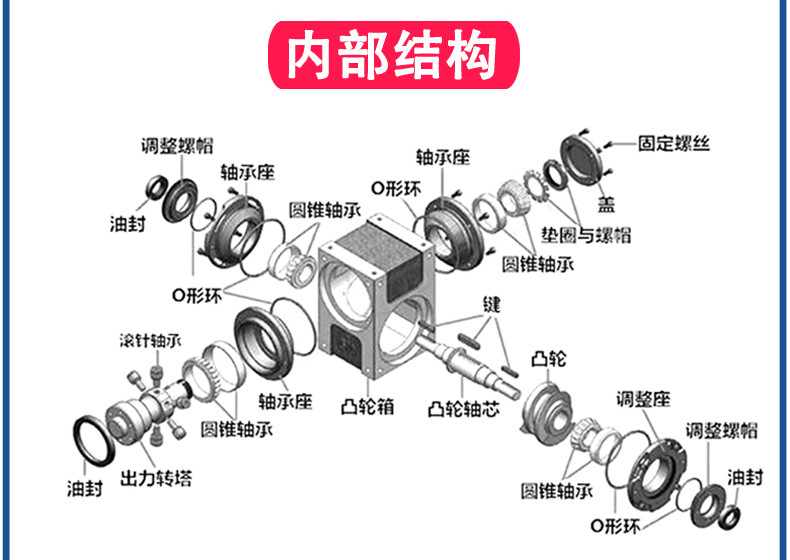

This machine type contains two plate cams fixed on the input shaft to drive the indexing plate on the output shaft to complete the indexing. This divider has a parallel conjugate cam mechanism design, which is most suitable for conveyor belts with larger pitches or for intermittent indexing with longer dwell time. There is also a three-piece heavy-duty type, which is more suitable for some fast and long-distance transmission, and the dwell time is also longer than the two-piece type. Other PU plate DS series and DF series include PF160, PF180, PD200, PF250, PF320, PF400, etc.

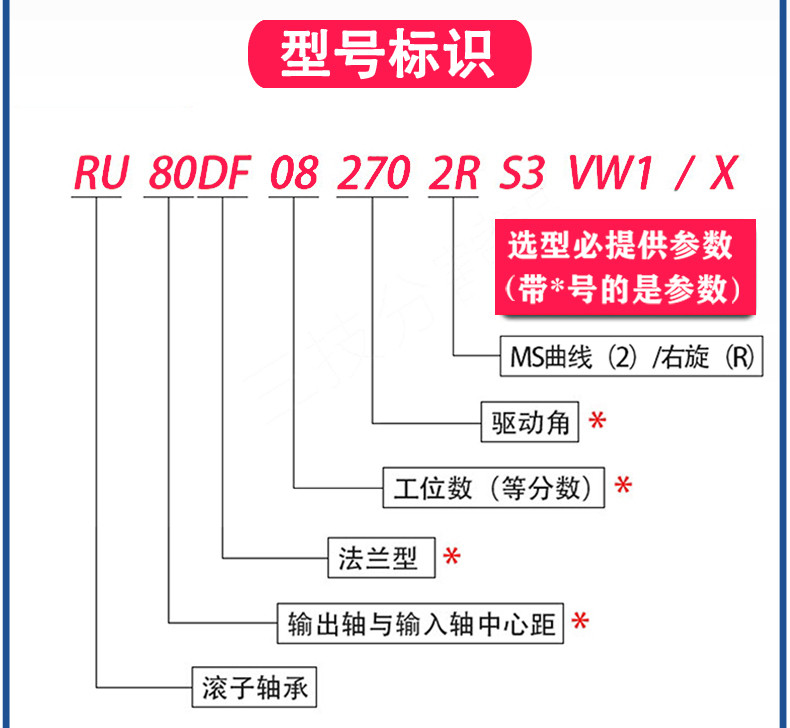

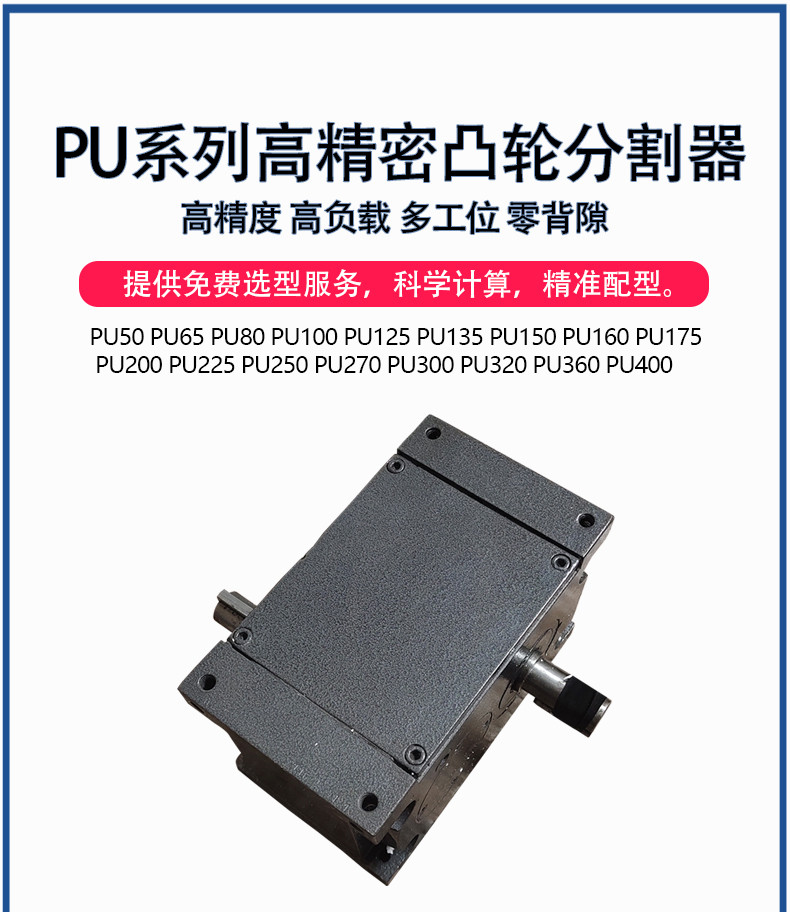

The specifications of flat conjugate cam dividers are: PU50, PU65, PU80, PU125, PU130, PU135, PU150, PU160, PU175, PU225, PU250, PU320, PU400

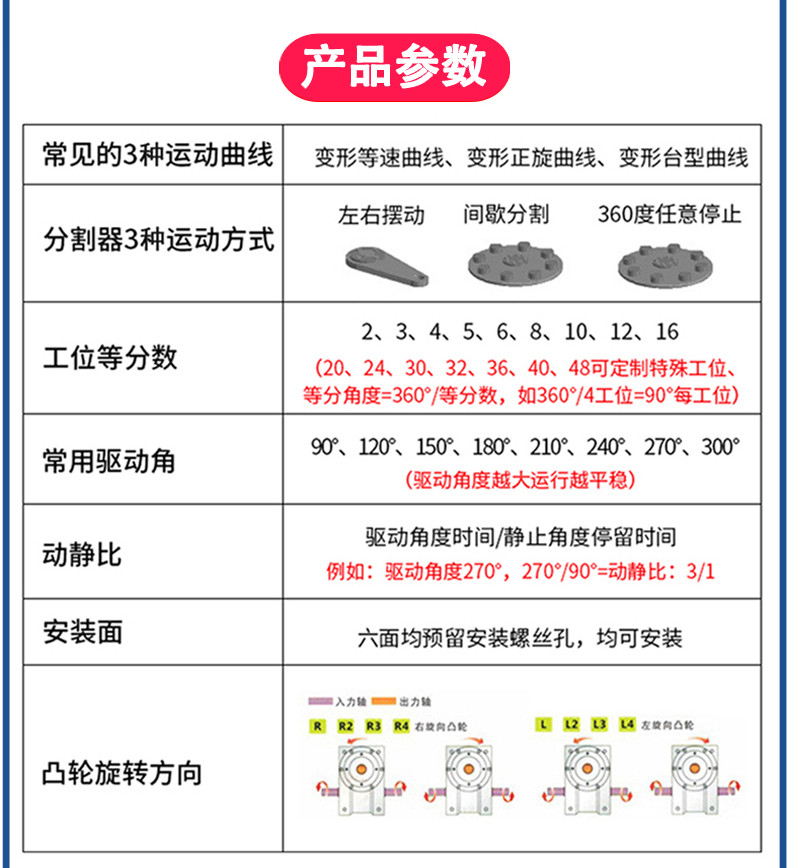

Number of divisions: 1 station, 2 stations, 3 stations, 4 stations, 6 stations, 8 stations, 10 stations, 12 stations, 16 stations, 20 stations, 24 stations, 32 stations...

The number of divisions can be customized according to customer needs, and more than 100 workstations can be achieved.

Driving Angle: 90 degrees, 120 degrees, 150 degrees, 180 degrees, 220 degrees, 240 degrees, 270 degrees, 300 degrees, 330 degrees, 360 degrees.
